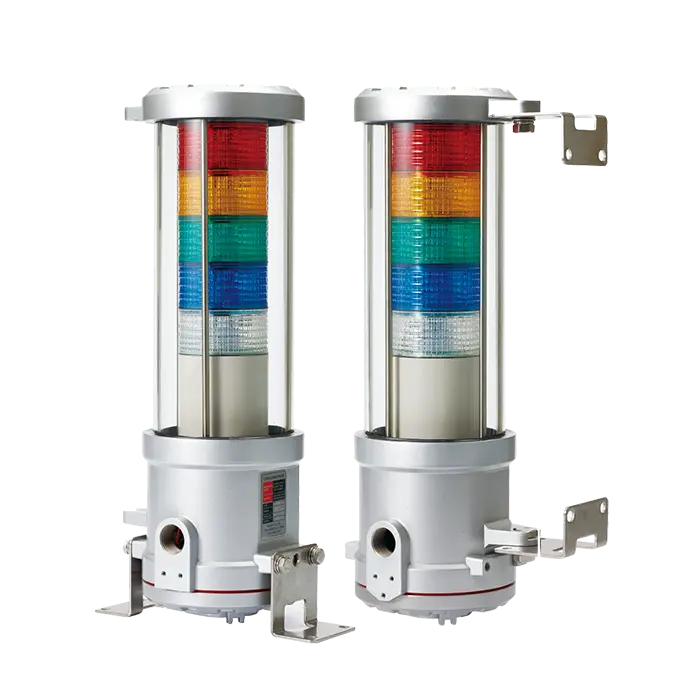

QTEXB Ø144mm Explosion Proof LED Tower Light with Buzzer
The QTEXB series is an explosion proof LED tower light with a built-in siren buzzer, designed for hazardous industrial environments where both visual and audible warning signals are required.
The unit features an Ø80 LED tower light installed inside a durable flame proof aluminum housing. A specially designed reflector concentrates the LED light to improve long-distance visibility, while the long-lasting high-intensity LED light source helps reduce maintenance requirements.
The integrated buzzer provides sound output up to 90dB at 1 metre. QTEXB is available with 1 to 5 signal layers and supports both steady and flashing operation. Direct-mount and wall-mount versions are available for different installation requirements.
Key Features
- Explosion proof LED tower light with integrated siren buzzer
- Designed for Zone 1, 2, 21 and 22 hazardous environments
- Maximum buzzer sound output: 90dB at 1m
- Ø80 LED tower light installed inside a flame proof housing
- Available with 1 to 5 signal layers
- Selectable steady or flashing operation
- Flashing rate: 60-80 flashes/min
- High-intensity, long-lasting LED light source
- Special reflector for improved long-distance visibility
- Durable aluminum housing
- Internal terminal box for convenient power wiring
- Direct-mount and wall-mount versions available
- IP66 protection rating
- Available for DC 12V, DC 24V and AC 95-230V
- Cable entry: 3/4″ NPT
- Standard housing color: Silver
- Available lens colors: Red, Amber, Green, Blue and White
Dimensions
- Diameter: Ø144mm
- Height, direct mount type: 472mm
- Height, wall mount type: 457mm
Operating Temperature
- -40°C to +60°C
Explosion Protection
IECEx:
- Ex db IIC T6 Gb, IP66
- Ex tb IIIC T85°C Db, IP66
ATEX:
- II 2G Ex db IIC T6 Gb, IP66
- II 2D Ex tb IIIC T85°C Db, IP66
KCs:
- Ex d IIC T6, IP66
- Ex tD A21 T85°C, IP66
Certificates
- IECEx
- ATEX
- KCs
- TS
- TIIS
Materials
- Lens: Tempered glass
- Filter lens: AS
- Housing: Aluminum
- Reflector: Heat-resistant ABS
Available Signal Colors
- Red
- Amber
- Green
- Blue
- White
All articles
| Choose amount | Art.no | Description | Type of product | Material | Ex.zone |
|---|---|---|---|---|---|
| QTEXB | Explosion proof LED tower light with built-in buzzer, 1-layer, DC12V, steady/flashing, Max.90dB, IP66 | Explosion proof LED tower light with buzzer | Aluminum / Tempered glass / AS / Heat-resistant ABS | 1, 2 / 21, 22 | |
| QTEXB-1 | Explosion proof LED tower light with built-in buzzer, 1-layer, DC24V, steady/flashing, Max.90dB, IP66 | Explosion proof LED tower light with buzzer | Aluminum / Tempered glass / AS / Heat-resistant ABS | 1, 2 / 21, 22 | |
| QTEXB-2 | Explosion proof LED tower light with built-in buzzer, 1-layer, AC95V-230V, steady/flashing, Max.90dB, IP66 | Explosion proof LED tower light with buzzer | Aluminum / Tempered glass / AS / Heat-resistant ABS | 1, 2 / 21, 22 | |
| QTEXB-3 | Explosion proof LED tower light with built-in buzzer, 2-layer, DC12V, steady/flashing, Max.90dB, IP66 | Explosion proof LED tower light with buzzer | Aluminum / Tempered glass / AS / Heat-resistant ABS | 1, 2 / 21, 22 | |
| QTEXB-4 | Explosion proof LED tower light with built-in buzzer, 2-layer, DC24V, steady/flashing, Max.90dB, IP66 | Explosion proof LED tower light with buzzer | Aluminum / Tempered glass / AS / Heat-resistant ABS | 1, 2 / 21, 22 | |
| QTEXB-5 | Explosion proof LED tower light with built-in buzzer, 2-layer, AC95V-230V, steady/flashing, Max.90dB, IP66 | Explosion proof LED tower light with buzzer | Aluminum / Tempered glass / AS / Heat-resistant ABS | 1, 2 / 21, 22 | |
| QTEXB-6 | Explosion proof LED tower light with built-in buzzer, 3-layer, DC12V, steady/flashing, Max.90dB, IP66 | Explosion proof LED tower light with buzzer | Aluminum / Tempered glass / AS / Heat-resistant ABS | 1, 2 / 21, 22 | |
| QTEXB-7 | Explosion proof LED tower light with built-in buzzer, 3-layer, DC24V, steady/flashing, Max.90dB, IP66 | Explosion proof LED tower light with buzzer | Aluminum / Tempered glass / AS / Heat-resistant ABS | 1, 2 / 21, 22 | |
| QTEXB-8 | Explosion proof LED tower light with built-in buzzer, 3-layer, AC95V-230V, steady/flashing, Max.90dB, IP66 | Explosion proof LED tower light with buzzer | Aluminum / Tempered glass / AS / Heat-resistant ABS | 1, 2 / 21, 22 | |
| QTEXB-9 | Explosion proof LED tower light with built-in buzzer, 4-layer, DC12V, steady/flashing, Max.90dB, IP66 | Explosion proof LED tower light with buzzer | Aluminum / Tempered glass / AS / Heat-resistant ABS | 1, 2 / 21, 22 | |
| QTEXB-10 | Explosion proof LED tower light with built-in buzzer, 4-layer, DC24V, steady/flashing, Max.90dB, IP66 | Explosion proof LED tower light with buzzer | Aluminum / Tempered glass / AS / Heat-resistant ABS | 1, 2 / 21, 22 | |
| QTEXB-11 | Explosion proof LED tower light with built-in buzzer, 4-layer, AC95V-230V, steady/flashing, Max.90dB, IP66 | Explosion proof LED tower light with buzzer | Aluminum / Tempered glass / AS / Heat-resistant ABS | 1, 2 / 21, 22 | |
| QTEXB-12 | Explosion proof LED tower light with built-in buzzer, 5-layer, DC12V, steady/flashing, Max.90dB, IP66 | Explosion proof LED tower light with buzzer | Aluminum / Tempered glass / AS / Heat-resistant ABS | 1, 2 / 21, 22 | |
| QTEXB-13 | Explosion proof LED tower light with built-in buzzer, 5-layer, DC24V, steady/flashing, Max.90dB, IP66 | Explosion proof LED tower light with buzzer | Aluminum / Tempered glass / AS / Heat-resistant ABS | 1, 2 / 21, 22 | |
| QTEXB-14 | Explosion proof LED tower light with built-in buzzer, 5-layer, AC95V-230V, steady/flashing, Max.90dB, IP66 | Explosion proof LED tower light with buzzer | Aluminum / Tempered glass / AS / Heat-resistant ABS | 1, 2 / 21, 22 |
Art.no: QTEXB
Type of product: Explosion proof LED tower light with buzzer
Material: Aluminum / Tempered glass / AS / Heat-resistant ABS
Ex.zone: 1, 2 / 21, 22
Art.no: QTEXB-1
Type of product: Explosion proof LED tower light with buzzer
Material: Aluminum / Tempered glass / AS / Heat-resistant ABS
Ex.zone: 1, 2 / 21, 22
Art.no: QTEXB-2
Type of product: Explosion proof LED tower light with buzzer
Material: Aluminum / Tempered glass / AS / Heat-resistant ABS
Ex.zone: 1, 2 / 21, 22
Art.no: QTEXB-3
Type of product: Explosion proof LED tower light with buzzer
Material: Aluminum / Tempered glass / AS / Heat-resistant ABS
Ex.zone: 1, 2 / 21, 22
Art.no: QTEXB-4
Type of product: Explosion proof LED tower light with buzzer
Material: Aluminum / Tempered glass / AS / Heat-resistant ABS
Ex.zone: 1, 2 / 21, 22
Art.no: QTEXB-5
Type of product: Explosion proof LED tower light with buzzer
Material: Aluminum / Tempered glass / AS / Heat-resistant ABS
Ex.zone: 1, 2 / 21, 22
Art.no: QTEXB-6
Type of product: Explosion proof LED tower light with buzzer
Material: Aluminum / Tempered glass / AS / Heat-resistant ABS
Ex.zone: 1, 2 / 21, 22
Art.no: QTEXB-7
Type of product: Explosion proof LED tower light with buzzer
Material: Aluminum / Tempered glass / AS / Heat-resistant ABS
Ex.zone: 1, 2 / 21, 22
Art.no: QTEXB-8
Type of product: Explosion proof LED tower light with buzzer
Material: Aluminum / Tempered glass / AS / Heat-resistant ABS
Ex.zone: 1, 2 / 21, 22
Art.no: QTEXB-9
Type of product: Explosion proof LED tower light with buzzer
Material: Aluminum / Tempered glass / AS / Heat-resistant ABS
Ex.zone: 1, 2 / 21, 22
Art.no: QTEXB-10
Type of product: Explosion proof LED tower light with buzzer
Material: Aluminum / Tempered glass / AS / Heat-resistant ABS
Ex.zone: 1, 2 / 21, 22
Art.no: QTEXB-11
Type of product: Explosion proof LED tower light with buzzer
Material: Aluminum / Tempered glass / AS / Heat-resistant ABS
Ex.zone: 1, 2 / 21, 22
Art.no: QTEXB-12
Type of product: Explosion proof LED tower light with buzzer
Material: Aluminum / Tempered glass / AS / Heat-resistant ABS
Ex.zone: 1, 2 / 21, 22
Art.no: QTEXB-13
Type of product: Explosion proof LED tower light with buzzer
Material: Aluminum / Tempered glass / AS / Heat-resistant ABS
Ex.zone: 1, 2 / 21, 22
Art.no: QTEXB-14
Type of product: Explosion proof LED tower light with buzzer
Material: Aluminum / Tempered glass / AS / Heat-resistant ABS
Ex.zone: 1, 2 / 21, 22
