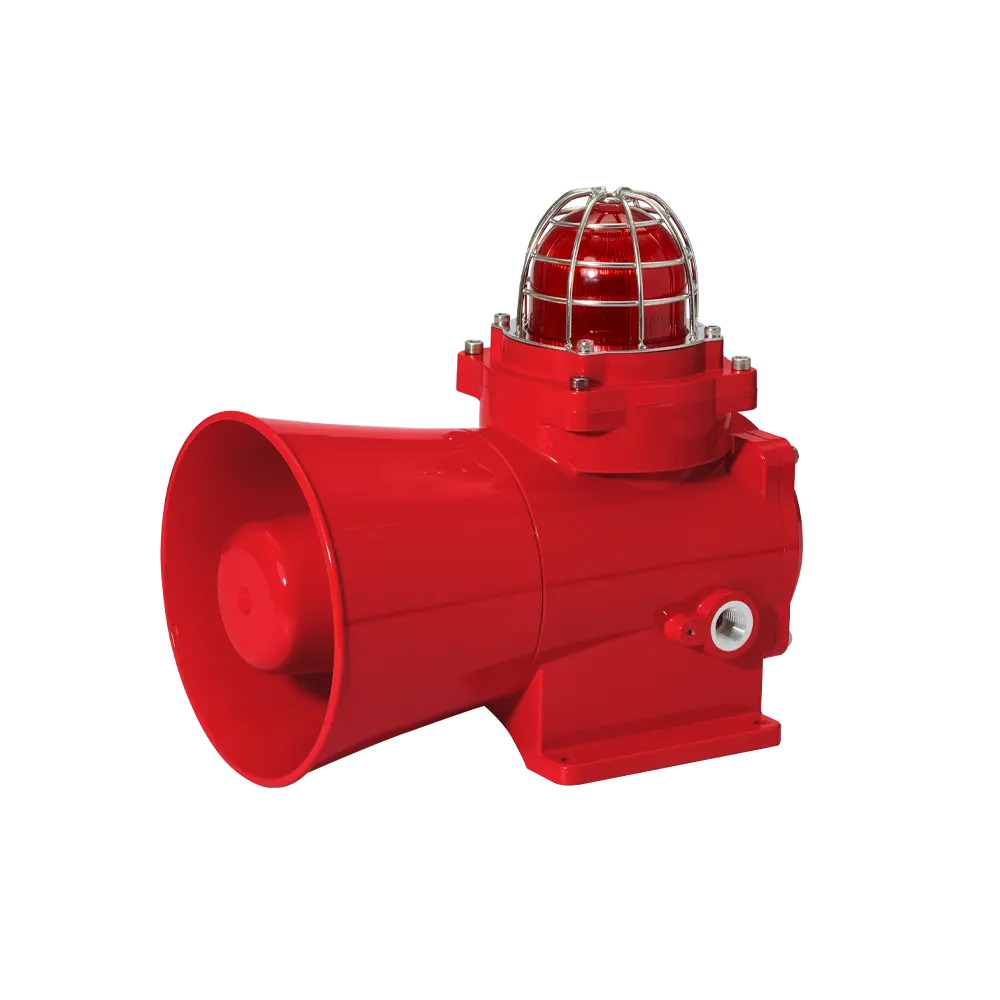

QNHS Explosion Proof LED Signal Beacon and Electronic Sounder

QNHS Explosion Proof LED Signal Beacon and Electronic Sounder

The QNHS series combines an LED signal beacon with a powerful electronic sounder in a durable explosion proof enclosure. It is designed for hazardous industrial environments where clear visual and audible warning signals are required.

The beacon supports multiple lighting effects, including steady, flashing, strobe and simulated revolving modes. Its long-lasting LED light source provides excellent resistance to shock and vibration while helping to reduce maintenance requirements.

The integrated electronic sounder offers a wide selection of warning sounds, special warning sounds, melodies, alarms and customizable voice messages. The standard QNHS model provides sound output up to 118dB at 1 metre, while the QNHS-H version reaches up to 123dB at 1 metre. Sound volume is adjustable.

Key Features

• Explosion proof LED signal beacon with integrated electronic sounder
• QNHS sound output up to 118dB at 1m
• QNHS-H sound output up to 123dB at 1m
• Adjustable sound volume
• Multiple lighting modes: steady, flashing, strobe and simulated revolving
• Multiple sound selections: warning sounds, special warning sounds, melodies, alarms and customizable voice messages
• Excellent shock and vibration resistance
• Long-lasting LED light source
• Durable aluminum housing
• Fully enclosed structure with IP66 protection
• Available for DC 12-24V and AC 110-230V
• Cable entry: 1/2″ NPT
• Standard housing color: Red
• Available lens colors: Red, Amber, Green and Blue

Operating Temperature

• T5: -40°C to +70°C
• T6: -40°C to +55°C

Signal Rates

• Flashing rate (LF type): 60-80 flashes/min
• Strobe rate (LS type): 70-80 flashes/min
• Simulated revolving rate (LR type): 120-140 RPM

Explosion Protection

IECEx:

• Ex db IIC T6 Gb, IP66
• Ex db IIC T5 Gb, IP66

ATEX:

• II 2G Ex db IIC T6 Gb, IP66
• II 2G Ex db IIC T5 Gb, IP66

KCs:

• Ex d IIC T5/T6 IP66

NEPSI / CCC:

• Ex db IIC T6/T5 Gb, IP66

Certificates

• ATEX
• IECEx
• NEPSI
• CCC
• KCs

Materials

• Housing: Aluminum
• Horn housing: PC
• Lens: Tempered glass
• Filter: PC

OPTIONAL TECHNICAL DATA

QNHS, DC 12-24V:
Current: Max. 1.4A
Weight: 7.50kg

QNHS, AC 110-230V:
Current: Max. 390mA
Weight: 7.65kg

QNHS-H, DC 12-24V:
Current: Max. 3.4A
Weight: 7.50kg

QNHS-H, AC 110-230V:
Current: Max. 560mA
Weight: 7.65kg
