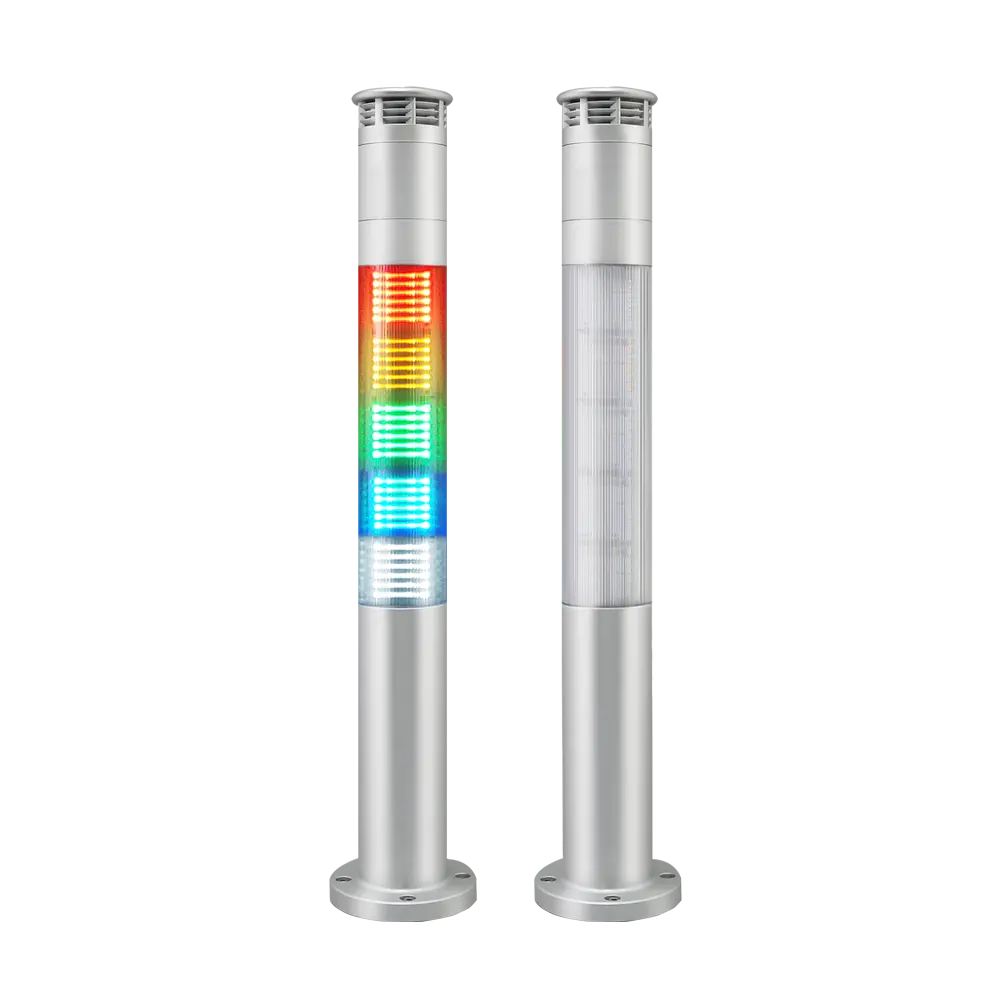

QST50B-Ex Flame and Dust Ignition Proof Slim LED Signal Tower Light with Built-in Buzzer

QST50B-Ex Flame and Dust Ignition Proof Slim LED Signal Tower Light with Built-in Buzzer

The QST50B-Ex is a slim explosion-protected LED signal tower light with an integrated buzzer, designed for hazardous industrial environments where both visual and audible warning signals are required.

A specially designed light diffusion tube improves long-distance visibility by concentrating and distributing the LED light. The long-lasting LED light source helps reduce maintenance requirements, while the aluminum housing provides excellent durability in demanding operating conditions.

The built-in buzzer provides sound output up to 90dB at 1 metre. The QST50B-Ex is supplied as a 5-layer signal tower and is available for DC 24V and AC 110-230V power supplies. The fully enclosed construction provides IP66 protection.

Key Features

• Flame and dust ignition proof slim LED signal tower light with built-in buzzer
• Designed for hazardous gas and dust environments
• 5-layer signal tower configuration
• Maximum buzzer sound output: 90dB at 1m
• Special light diffusion tube for improved long-distance visibility
• Long-lasting LED light source
• Durable aluminum housing and cover
• IP66 protection rating
• Available for DC 24V and AC 110-230V
• Flashing rate: 60-80 flashes/min
• Standard housing color: Silver
• Cable entry: M12 or M16xP1.5
• Available signal colors: Red, Amber, Green, Blue and White

Operating Temperature

• -40°C to +60°C

Explosion Protection

IECEx:

• Ex db IIC T6 Gb
• Ex tb IIIC T85°C Db

ATEX:

• II 2G Ex db IIC T6 Gb
• II 2D Ex tb IIIC T85°C Db

KCs:

• Ex d IIC T6
• Ex tD A21 IP66 T85°C

Certificates

• IECEx
• ATEX
• KCs
• CCC

Materials

• Lens: PC
• Diffusion lens: PC
• Housing: Aluminum
• Cover: Aluminum

Available Signal Colors

• Red
• Amber
• Green
• Blue
• White
