CZ6474/111S & CZ6474/121B Explosion-Proof LED Tricolor Warning Light

CZ6474/111S & CZ6474/121B Explosion-Proof LED Tricolor Warning Light

The CZ6474/111S and CZ6474/121B are IIC-rated explosion-proof LED tricolor warning lights designed for use in hazardous industrial environments. The range is suitable for explosive gas areas in Zones 1 and 2 and combustible dust areas in Zones 21 and 22.

The housing is manufactured from die-cast aluminum alloy and finished with pure epoxy resin powder for improved corrosion resistance. The transparent cover is made from tempered glass, while exposed fasteners are stainless steel. The luminaires use flameproof cable glands for direct cable entry and incorporate an internal heat-insulation design combined with an external high-density heat sink for improved thermal management.

Red, green and yellow LED light sources are fitted as standard, while other colors can be customized on request. The light can operate continuously or in flashing mode at approximately 60 flashes per minute. One or two optional explosion-proof buzzers can be added to provide combined visual and audible signaling.

The CZ6474/111S is the flat-light version, while the CZ6474/121B is the bracket-light version. Both models are designed for long service life, with the LED source rated for up to 50,000 hours, and are intended to minimize maintenance requirements.

Key Features

• IIC explosion-proof LED tricolor warning light
• Suitable for Zones 1, 2, 21 and 22
• Red, green and yellow LEDs as standard
• Other light colors available on request
• Constant-on or flashing operation
• Flashing frequency: approximately 60 flashes/min
• Optional one or two explosion-proof buzzers
• Rated sound pressure: 80dB at 30cm
• Die-cast aluminum alloy housing
• Pure epoxy resin powder coating for corrosion resistance
• Tempered glass transparent cover
• Stainless steel exposed fasteners
• IP66 protection rating
• LED service life up to 50,000 hours
• Good vibration resistance
• Good electromagnetic compatibility
• ATEX and IECEx certified

Models

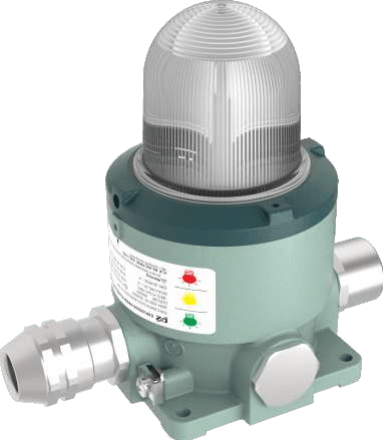

• CZ6474/111S – Flat light

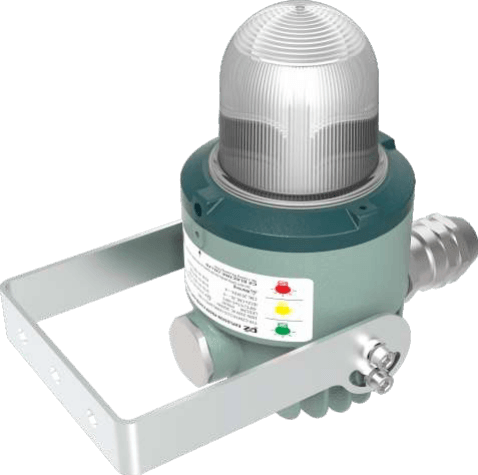

• CZ6474/121B – Bracket light

Explosion Protection

Without buzzer:

• Ex db IIC T6/T5 Gb
• Ex tb IIIC T80°C/T95°C Db

With buzzer:

• Ex db ib IIC T6/T5 Gb
• Ex tb IIIC T80°C/T95°C Db

Hazardous Area Use

• Gas: Zone 1 and Zone 2
• Dust: Zone 21 and Zone 22

Standards and Approvals

• IECEx
• ATEX
• GB/T 3836
• IEC 60079
• EN 60079

Electrical Data

• Rated voltage option: 20-40V DC / 20-28V AC, 50/60Hz
• With buzzer: 20-40V DC / 24-28V AC, 50/60Hz
• High-voltage option: 127-250V DC / 100-250V AC, 50/60Hz
• Light source: LED
• Power / luminous flux: 5W / 50lm
• Power factor: >0.98

Ambient Temperature

• -40°C to +40°C / +55°C for standard versions
• -60°C low-temperature versions available as customized equipment

Signal Options

• Standard colors: Red, Green, Yellow
• L – Constant ON
• F – Flashing
• 1B – One buzzer
• 2B – Two buzzers

Connections

• Terminal: 2.5mm²
• PE terminal: 2 x 10mm²
• CZ6474/111S cable entry: 4 x M25 x 1.5
• CZ6474/121B cable entry: 2 x M25 x 1.5

Materials

• • Housing: Die-cast aluminum alloy
  • Surface finish: Pure epoxy resin powder coating
  • Transparent cover: Tempered glass
  • Exposed fasteners: Stainless steel
